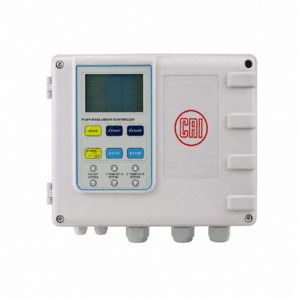

ELCON Controller

Controllers & protection

DOWNLOAD ↗
03 PUMP RANGE
PDF

PEM / JTS / CTS

Domestic pump selection

DOWNLOAD ↗
05 SELECTION
PDF

S4S 4-inch Quick Chart

Borehole selection

DOWNLOAD ↗
07 SUBMERSIBLE
PDF

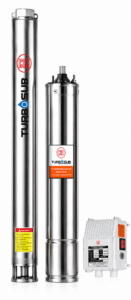

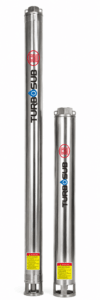

S4P TurboSub Series

Submersible catalogue

DOWNLOAD ↗
08 LEVEL CONTROL
PDF

CPV / CPH Float

Float switch range

DOWNLOAD ↗
CRI / WARTHOG AGENCIES

SPECIFY WITH CONFIDENCE.

Keep the technical information close when selecting, specifying or installing your next pump solution.

C.R.I.
01 / The C.R.I. story

Pumping Trust. Worldwide.

More than six decades of global engineering excellence, now backed by people who understand the South African market.

60+
Years of
engineering
excellence
C.R.I. Pumps water management and pumping solutions

Warthog Agencies is proud to introduce the internationally recognised C.R.I. Pumps range to Southern Africa. As an authorised distributor of the C.R.I. domestic range, we supply premium pumps, motors, controllers and complete water-management solutions to retail partners serving residential, agricultural, commercial and light-industrial applications.

Whether you are selecting a borehole system, upgrading a pressure pump or planning dependable water transfer, C.R.I. delivers efficiency, reliability and long-term performance — with the public able to purchase the range through participating BUCO stores.

Explore C.R.I. Pumps ↗
C.R.I.
Pumping technology
Catalogue Section 01 / Submersible Pump Kits

MK Series & L4A Motors.

The Maxi-Kit (MK Series) is an all-in-one 3-inch and 4-inch submersible borehole pump solution supplied complete with motor, cable, safety rope, base plate, adaptor and control box. Paired with high-efficiency L4A 4-inch oil-filled submersible motors.

3-inch
4-inch
Borehole
Complete kit
C.R.I. Maxi-Kit MK Series 3 inch and 4 inch submersible pump kit
C.R.I. PUMPS
3″ + 4″
Submersible
pump range
Built for the job

One kit. Everything you need.

01 / APPLICATIONS

Where it works

  • Residential borehole supply
  • Farm & agricultural water transfer
  • Domestic water storage filling
  • Shallow and deep well pumping
02 / KIT CONTENTS

Included accessories

  • 1Ph control box
  • Borehole base plate
  • 3-Core submersible cable
  • Safety rope
  • Adaptor (3MK: 25mm / 4MK: 32mm)
Technical Data / Performance

Choose the right configuration.

Technical information is presented below. On mobile, swipe horizontally across the tables to view all specifications.
3MK Series Performance — 1″ BSP Outlet
Model Pump Model Motor kW Stages Flow Range (m³/h) Head Range (m)
3MK-1 S3Y-1/10 L3Y-02N 0.25 10 0–2.4 43–16
3MK-2 S3Y-1/15 L3Y-03N 0.37 15 0–2.4 65–24
3MK-3 S3Y-1/22 L3Y-04N 0.55 22 0–2.4 95–36
4MK Series Performance — 1¼″ BSP Outlet
Model Pump Model Motor kW Stages Flow Range (m³/h) Head Range (m)
4MK-1 S4Y-2A/11 L4Y-05N 0.55 11 0–3.6 78–23
4MK-2 S4Y-2A/14 L4Y-07N 0.75 14 0–4.2 99–30
4MK-3 S4Y-3A/16 L4Y-11N 1.10 16 0–4.8 121–29
L4A 4″ Oil-Filled Motors — 1Ph & 3Ph
Motor Model Power (kW / HP) Full Load Current Capacitor Compatible Control Panels
L4A-03N / 03T 0.37 kW / 0.5 HP 3.6A (1Ph) / 1.1A (3Ph) 15 μF CP-5LE-03M / EPP-5LD-03NE / EPP-5W1-07-40-T
L4A-05N / 05T 0.55 kW / 0.75 HP 4.8A (1Ph) / 1.9A (3Ph) 20 μF CP-5LE-05M / EPP-5LD-05NE-0.55kW / EPP-5S1-55-110-T
L4A-07N / 07T 0.75 kW / 1.0 HP 6.3A (1Ph) / 2.4A (3Ph) 30 μF CP-5LE-07M / EPP-5LD-07NE-0.75kW / EPP-5W1-130-150-T
L4A-11N / 11T 1.10 kW / 1.5 HP 8.6A (1Ph) / 3.15A (3Ph) 40 μF CP-5LE-11M / EPP-5LD-2.20 kW
L4A-15N / 15T 1.50 kW / 2.0 HP 11.5A (1Ph) / 4.2A (3Ph) 50 μF CP-5LE-15M / ELCON PLUS 3 PHASE
L4A-22N / 22T 2.20 kW / 3.0 HP 15.0A (1Ph) / 6.0A (3Ph) 60 μF CP-5LE-22M / EPP-5LD 07-40-T / EPP-5LD 55-75-T

Detailed catalogue references

Tap either technical graphic to view it at full size and inspect the detailed specifications.

C.R.I. MK Series supplied package accessories and drop cable lengths
⌕ Click to zoom
C.R.I. L4A oil-filled motor range and compatible control panels
⌕ Click to zoom
Catalogue Section 02 / Peripheral Pumps

PE Series Peripheral. Pumping.

C.R.I. PE Series peripheral pumps are compact, high-head surface pumps designed for domestic water transfer, garden and fountain duty, pressure boosting and domestic RO feed-water applications.

0.37–0.75 Power kW
5–55m Head Range
1–2.4 Flow m³/h
C.R.I. PE Series peripheral pump exploded view
PE Series / Exploded View
PE Peripheral
Pump Series
Designed for dependable water transfer

Compact size. Serious head.

01 / APPLICATIONS

Where it works

  • Residences
  • Gardens & fountains
  • Pressure boosting
  • Landscaping
  • Domestic RO feed water
02 / KEY FEATURES

Built for performance

  • Compact construction
  • High head performance
  • Single-phase 220–230V, 50Hz
  • S1 continuous duty
  • Thermal protection on single-phase models
Technical Data / Performance

Choose the right configuration.

Technical Specifications
Specification Catalogue Value
Power 0.37 & 0.75 kW
Speed 2850 rpm
Duty / protection S1 continuous duty / IP54
Insulation Class B
Flow range 1–2.4 m³/h
Head range 5–55 m
Maximum suction lift 6 m
Maximum operating pressure 5.5 bar
Models PEM-3NE, PEM-7N, PEM-3N-QF, PEM-7N-QF
Material of Construction
Part Material
Pump casing Cast iron
Impeller Brass
Pump shaft Stainless steel
Shaft seal Mechanical seal (ceramic & carbon)
Performance Selection
Model Power Flow Range Head Range
PEM-3NE / PE-3N-QF 0.37 kW 1–1.8 m³/h 5–38 m
PEM-7N / PE-7N-QF 0.75 kW 1–2.4 m³/h 8–55 m

Technical drawings & identification

Select an image to inspect the technical detail. On mobile, pinch/zoom or use the controls once the image is opened.

C.R.I. PE Series peripheral pump exploded view and components
⌕ Zoom drawing
C.R.I. PE Series general arrangement drawing
⌕ Zoom drawing
C.R.I. PE Series model identification code
⌕ Zoom drawing
Catalogue Section 03 / Centrifugal Monoblock Pumps

ACM Series Centrifugal. Monoblock.

ACM Series centrifugal monoblock pumps combine a rigid monoblock design with radial-flow hydraulics for dependable transfer, irrigation and pressure applications. The range reaches flows up to 65 m³/h and heads up to 35 m.

0.75–2.2 Power kW
65 m³/h Maximum Flow
35 m Maximum Head
C.R.I. ACM Series centrifugal monoblock pumps
ACM Series / Product Range
ACM Centrifugal
Monoblock Pumps
Built for transfer, irrigation & pressure

One range. Multiple applications.

01 / APPLICATIONS

Where it works

  • Water transfer
  • Irrigation
  • Sprinkler systems
  • Cooling-water supply
  • RO feed water
  • Pressure boosting
02 / KEY FEATURES

Built for performance

  • Back pull-out design
  • High hydraulic efficiency
  • Cast-iron and aluminium-frame variants
  • Single- and three-phase options
  • Mechanical seal with ceramic / carbon faces
Technical Data / Performance

Choose the right configuration.

Technical Specifications
Specification Catalogue Value
Power range 0.75–2.2 kW
Speed 2850 rpm
Flow / head Up to 65 m³/h / up to 35 m
Duty S1 continuous duty
Motor versions 1Ph 220–230V or 3Ph 380–415V, 50Hz
Maximum working pressure Up to 3.5 bar
Hydraulics Radial-flow impeller, mechanical seal
Models ACM-40S, ACM-54, ACM-42, ACM-23S, ACM-34, ACM-64 variants
Material of Construction
Part Material
Casing Cast iron / aluminium frame options
Impeller Brass or cast iron by model
Shaft Stainless steel
Seal Mechanical seal (ceramic & carbon)
Performance Selection
Model Family Power Range Use the Curve For
ACM-40S 0.75–1.5 kW Domestic transfer and pressure
ACM-54 / ACM-42 1.1–2.2 kW Higher flow transfer
ACM-23S / ACM-34 / ACM-64 0.75–2.2 kW Irrigation and commercial duty

Technical drawings & performance

Select a drawing to inspect the technical detail. Zoom, drag and examine the catalogue information at full size.

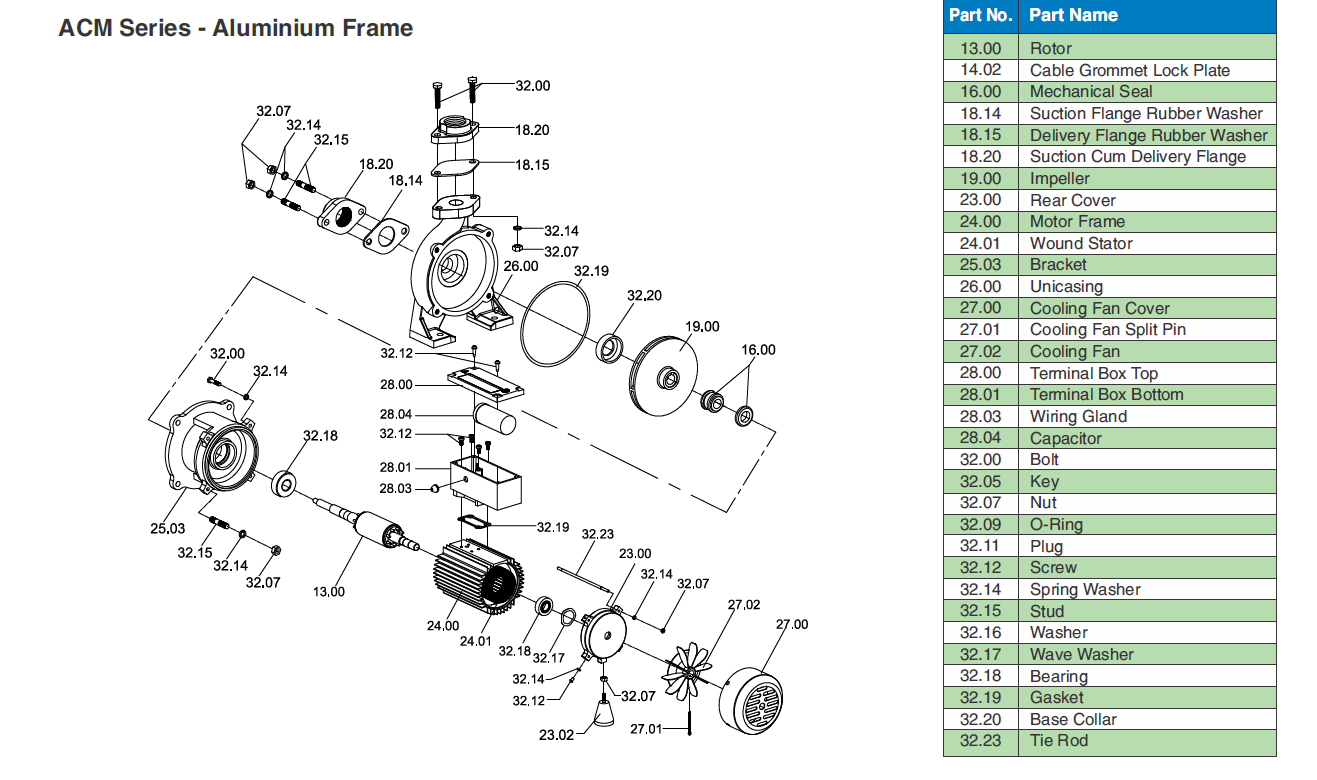

C.R.I. ACM Series aluminium frame exploded view
⌕ Zoom drawing
C.R.I. ACM Series performance curves
⌕ Zoom curves
Catalogue Section 04 / Horizontal Monoblock Pumps

CT Series Efficient. Dependable.

CT Series horizontal single-stage monoblock pumps are built for efficient water transfer, irrigation, sprinklers, fountains and pressure boosting. The range includes CTS, CTB and CTB2 configurations.

0.37–2.2 Power kW
45 m³/h Flow
35.8 m Head
C.R.I. CT Series horizontal monoblock pumps
C.R.I. CT / Pump Range
CT Horizontal
Monoblock
WATER
Water Transfer / Irrigation / Pressure

Designed for everyday performance.

01 / APPLICATIONS

Where it works

  • Residences & commercial buildings
  • Gardens
  • Agriculture
  • Sprinkler systems
  • Fountains
  • Cooling-water supply
02 / KEY FEATURES

Built to perform

  • High efficiency
  • Back pull-out design
  • Thermal protection on single-phase models
  • Robust monoblock construction
  • Single- and three-phase models
Technical Data / Performance

Choose the right CT configuration.

Technical Specifications
Specification Catalogue Value
Power range 0.37–2.2 kW
Speed 2850 rpm
Versions 1Ph 220–230V / 3Ph 380–415V, 50Hz
Duty / protection S1 continuous duty / IP55
Insulation Class F
Flow / head 1–45 m³/h / 5–35.8 m
Maximum suction lift 6 m
Operating pressure Up to 3.5 bar
Models CTS-4/03M, CTS-5/05M, CTS-6/07M, CTB-6/11M, CTB-8/15M, CTB-35/22M and CTB2 variants
Performance Selection
Model Group Typical Power Catalogue Use
CTS 0.37–0.75 kW Compact domestic transfer
CTB 1.1–2.2 kW Higher-flow transfer and irrigation
CTB2 1.5–2.2 kW Higher-head applications

Technical drawings & performance

Select a drawing to open the full-size technical view. Zoom in to inspect catalogue details and performance curves.

C.R.I. CT Series exploded view
⌕ Zoom drawing
C.R.I. CT Series performance curves
⌕ Zoom curves
Catalogue Section 05 / Stainless Centrifugal Monoblock Pumps

CTSS Series Stainless Performance.

CTSS Series centrifugal pumps are robust horizontal single-stage monoblock pumps with a complete stainless-steel pump portion. They deliver high efficiency, strong suction-lift characteristics and low operating cost.

01 / APPLICATIONS

Where it works

  • Residences & commercial buildings
  • Gardens
  • Agriculture
  • Sprinkler systems
  • RO feed water
  • Fountains and cooling water
02 / KEY FEATURES

Built to perform

  • High efficiency
  • Back pull-out design
  • Stainless-steel casing and impeller
  • Thermal protection in single-phase models
  • Compact TEFC motor construction
Technical Data / Performance

Specify the right CTSS configuration.

Technical Specifications
Specification Catalogue Value
Power range 0.37–2.2 kW
Speed 2850 rpm
Versions 1Ph 220–230V / 3Ph 380–415V, 50Hz
Duty / protection S1 continuous duty / IP55
Insulation Class F
Flow / head 1–45 m³/h / 5–35.8 m
Maximum suction lift 6 m
Maximum liquid / ambient temperature 35°C / 40°C
Maximum operating pressure 3.5 bar
Flanges Suction 1¼, 1½ & 2 in / delivery 1 & 2 in
Material of Construction
Part Material
Impeller AISI 304 stainless steel
Casing & stuffing box AISI 304 stainless steel
Pump shaft AISI 304 stainless steel
Shaft seal Mechanical seal (ceramic & carbon)
Performance Selection
Model Power Voltage Options Head Range
CTSS-5/03M/T 0.37 kW 1Ph / 3Ph 16.5–7.5 m
CTSS-8/15M/T 1.5 kW 1Ph / 3Ph 32.8–15 m
CTSS-24/22M/T 2.2 kW 1Ph / 3Ph 22.7–12.8 m

Engineering detail

Select either technical drawing to open the full-resolution image and inspect catalogue details.

CTSS Series exploded view
⌕ Zoom drawing
CTSS Series second exploded technical view
⌕ Zoom drawing
Catalogue Section 06 / Jet Pumps

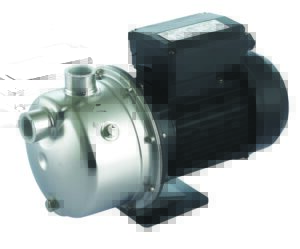

JTB & JTS Series

CRI Jet pumps are self-priming pumps for shallow-well and sump applications. Radial-flow hydraulics provide strong suction lift and efficient performance, while the back pull-out design keeps maintenance simple. JTS models use a fully stainless-steel pump portion for clean-water and sanitary installations.

2
Pump
Series
C.R.I. Jet Pumps
CRI JTB and JTS Series Jet Pumps
01 / Applications

Where it works

  • Residences
  • Pressure boosting
  • RO systems
  • Cooling systems
  • Washing systems
  • Utility water supply
02 / Key Features

Built to perform

  • Self-priming radial-flow design
  • Back pull-out maintenance
  • TEFC motor
  • Thermally protected single-phase models
  • JTS stainless-steel pump portion
Technical Data / Performance

Choose the right jet configuration.

Technical Specifications
Specification JTB Series JTS Series
Power range 0.37–1.5 kW 0.55–1.1 kW
Protection / insulation IP44 / Class B IP54 / Class F
Flow range 1–4.5 m³/h 1–3.5 m³/h
Head range 15–70 m 5–48 m
Maximum suction lift 6 m 6 m
Maximum operating pressure 7 bar 4.8 bar
Flanges Suction 1⅛ & 1¼ in / delivery 1 in Suction 1 in / delivery 1 in
Material of Construction
Part JTB Series JTS Series
Pump casing Cast iron AISI 304 stainless steel
Impeller Brass AISI 304 stainless steel
Diffuser / venturi / nozzle Engineering plastic Engineering plastic
Shaft AISI 304 stainless steel AISI 304 stainless steel
Seal Mechanical seal Mechanical seal
Performance Selection
Model Power Voltage Head at Zero Flow Maximum Flow
JTS-2/03MA 0.37 kW 1Ph 220V 30 m 2.5 m³/h
JTS-3/07M 0.75 kW 1Ph 220V 43 m 3.5 m³/h
JTS-3/11M 1.1 kW 1Ph 220V 48 m 3.5 m³/h
JTB-3/10M 0.75 kW 1Ph 220V 49 m 3.5 m³/h
JTB-3/15M 1.5 kW 1Ph 220V 70 m 4.5 m³/h

Engineering detail

Explore the technical construction and arrangement drawings. Click any drawing to open the full-resolution view.

CRI Jet Pumps JTB Series exploded view
⌕ Zoom
JTB Series Exploded View
CRI Jet Pumps JTB Series general arrangement drawing
⌕ Zoom
JTB Series General Arrangement
CRI Jet Pumps JTS Series general arrangement drawing
⌕ Zoom
JTS Series General Arrangement
CRI Jet Pumps JTS Series exploded view
⌕ Zoom
JTS Series Exploded View
Catalogue Section 07 / Booster System with VSD

I-PREZ Series

i-PREZ is a domestic pressure-boosting system with built-in variable speed for constant pipeline pressure. The pressure transducer continuously monitors demand while the system protects against dry run, overload, unbalanced voltage and short circuit.

80 m
Maximum
Head
18
m³/h
Maximum Flow
6.5
Bar
Pressure
C.R.I. i-PREZ VSD

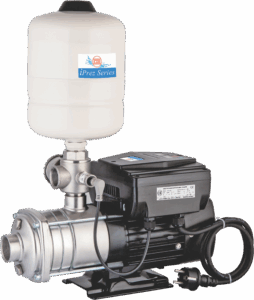

CRI i-PREZ Series booster system with variable speed drive
01 / Applications

Where it works

  • Villas
  • Pressure boosting
  • Gardens
  • Small buildings
  • Schools
  • RO systems
  • Solar applications
02 / Key Features

Built to perform

  • Wide LCD display
  • Fully stainless-steel wet parts
  • Five-way connector with built-in NRV
  • 9 bar pressure transducer
  • Integrated pressure tank, gauge and VSD
Technical Data / Performance

Choose the right configuration.

Technical Specifications Swipe on mobile →
Specification Catalogue Value
Output frequency 20–50 Hz
Pressure setting Up to 6.5 bar
Pressure transmitter 24V, 4–20mA
Temperature Ambient up to 40°C / liquid up to 70°C
Head / flow Up to 80 m / up to 18 m³/h
Power range 0.9, 1.1 & 2.2 kW
Input / VFD output 1Ph 220V / 3Ph 220V
Frequency 50Hz
Performance Selection Swipe on mobile →
Model Power Rated Flow Rated Head Maximum Head
I-Prez-09N 0.9 kW 4 m³/h 30 m 50 m
I-Prez-11N 1.1 kW 5 m³/h 40 m 80 m
I-Prez-22N 2.2 kW 12 m³/h 40 m 60 m

Engineering detail

Explore the i-PREZ technical drawing and dimensional data in full resolution. Click the drawing to enlarge it.

CRI i-PREZ Series technical drawing and performance data
⌕ Zoom technical drawing
i-PREZ Series Technical Drawing / Performance Data
CATALOGUE SECTION 08 / INTELLIGENT VARIABLE SPEED PUMPS

I-VARIO SERIES

i-Vario intelligent booster pumps use a permanent-magnet synchronous motor with an inbuilt drive to maintain constant pressure. Automatic speed variation between 2500 and 5200 rpm combines quiet delivery with energy efficiency.

C.R.I. PUMPS
C.R.I. i-Vario intelligent variable speed pump
01 I-VARIO 1000
01 / APPLICATIONS

WHERE IT WORKS

  • Constant-pressure water supply
  • Residential installations
  • Small commercial installations
02 / KEY FEATURES

BUILT TO PERFORM

  • Permanent-magnet motor
  • Inbuilt variable-frequency drive
  • Automatic speed regulation
  • Large LED touch-screen display
  • Compact thermoplastic enclosure
  • Easy to install
TECHNICAL DATA / PERFORMANCE

CHOOSE THE RIGHT CONFIGURATION.

TECHNICAL SPECIFICATIONS
SPECIFICATION CATALOGUE VALUE
Power 1 kW / 1.33 HP
Speed range 2500–5200 rpm
Supply 1Ph 230V, 50Hz
Protection / insulation IP44 / Class F
Maximum discharge / head 6.5 m³/h / 50 m
Factory pressure setting 10–45 m
Water temperature Up to 60°C
Pumped liquid Clean water, pH 6.5–8.5
Suction lift / pipe 6 m / 1 in × 1 in BSP
MATERIAL OF CONSTRUCTION
PART MATERIAL
Motor shaft AISI 410
Motor case AISI 304
Enclosure / casing / impeller Thermoplastic
PERFORMANCE SELECTION
MODEL MAX FLOW MAX HEAD RATED POWER SPEED RANGE
I-Vario 1000 6.5 m³/h 50 m 1000 W 2500–5200 rpm
CATALOGUE SECTION 09 / LEVEL CONTROL

FLOAT SWITCH

The C.R.I. float switch is a waterproof, corrosion- and abrasion-resistant level controller for submersible pumps, water tanks and other water systems. It can actuate a pump, indicator, alarm or auxiliary device.

C.R.I. / LEVEL CONTROL
C.R.I. float switches for water level control
09 FLOAT SWITCH
01 / APPLICATIONS

WHERE IT WORKS

  • Overhead tanks
  • Watersumps
  • Submersible pumps
  • Auto-filling
  • Auto-emptying
02 / KEY FEATURES

BUILT TO LAST

  • Quality-tested, strong and durable
  • Configurable auto-fill / auto-empty
  • 3 m, 5 m and 10 m cable lengths
  • 0.75–1.5 sq.mm cable sizes
  • 16A and 21A switch ratings
  • IP67 protection
TECHNICAL DATA / PERFORMANCE

SIMPLE CONTROL. RELIABLE PERFORMANCE.

TECHNICAL SPECIFICATIONS
SPECIFICATION CATALOGUE VALUE
Voltage 220–240V
Frequency 50 / 60Hz
Operating temperature 0–60°C
IP rating IP67
Cable length 3 m, 5 m & 10 m
Switch rating 16A & 21A
09
AUTOMATIC LEVEL CONTROL.

Designed to provide dependable pump activation and level control across a range of water-management applications.

C.R.I.
CATALOGUE SECTION 10 / DRAINAGE & SEWAGE

WASTEWATER RANGE

The residential catalogue continues with purpose-built drainage, stainless-steel drainage, sewage, medium- and heavy-duty sewage and cutter-pump solutions for solids handling and difficult wastewater duty.

10
CATALOGUE SECTION
DRAINAGE / SEWAGE
CRI sewage pumps with cutter
CRI PUMPS WASTEWATER SOLUTIONS
01 / APPLICATIONS

WHERE IT WORKS

  • Basement drainage
  • Sumps and pits
  • Greywater and wastewater
  • Sewage transfer
  • Solids handling
  • Cutter duty
02 / KEY FEATURES

BUILT FOR THE TOUGH STUFF

  • DL drainage pumps
  • DLS stainless-steel drainage pumps

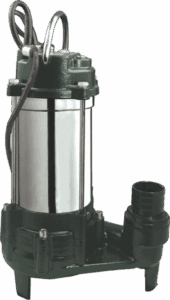

  • SL sewage pumps
  • SMC sewage pumps with cutter
  • Single-phase float-switch options
  • Cast-iron and stainless-steel impeller options
DRAINAGE / SEWAGE / SOLIDS HANDLING

MADE FOR DIFFICULT WATER.

From everyday drainage to demanding sewage and solids-handling applications, the range is designed around dependable water removal and practical field performance.

TECHNICAL SPECIFICATIONS
RANGE CATALOGUE HIGHLIGHTS
DLS Series 0.37–1.1 kW; 5–39 m³/h; stainless-steel 304 impeller
DL Series 0.37–1.5 kW; 3–15 m³/h; cast iron / PPO impeller
SL Series 0.75–1.5 kW; 50 mm outlet; 44 mm solids handling
SMC Series 1.1–1.85 kW; 2 in outlet; 16.5–23.5 m max head; cutter
SL-2D Series 0.55–0.75 kW; 25–35 mm solids handling
PERFORMANCE SELECTION
MODEL POWER RATED HEAD RATED FLOW MAX HEAD WEIGHT
DLS-5L-03CS 0.37 kW 9 m 5 m³/h 11 m 8.5 kg
DL-8L-05CS 0.55 kW 10 m 10 m³/h 13 m 16 kg
SL-2V-07DS-A 0.75 kW 13.3 m 21.6 m³/h 13.3 m 20.5 kg
SMC-1M-15DT 1.5 kW 17 m 10 m³/h duty 21 m —
TECHNICAL DATA / PERFORMANCE

SEE THE DETAIL.

Tap any technical image to open a larger view.

01 DLS SERIES / PERFORMANCE CURVES & DATA
02 DL SERIES / PERFORMANCE CURVES
03 DL SERIES / DRAINAGE PUMPS
10
CRI / WATER MANAGEMENT

WHEN THE WATER HAS TO GO.

Purpose-built drainage and sewage solutions for residential, commercial and demanding wastewater applications.

C.R.I.
05 / DOWNLOAD CENTRE

TAKE THE CATALOGUE WITH YOU.

Download the latest CRI pump catalogues, technical references and product guides for selection, specification and installation planning.

EXPLORE THE LIBRARY
FEATURED RESOURCE
01
Warthog Agencies CRI PUMPS
RESIDENTIAL CATALOGUE
50Hz / COMPLETE PRODUCT RANGE
TECHNICAL DATA PERFORMANCE SELECTION
DOWNLOAD FULL CATALOGUE ↗
THE TECHNICAL LIBRARY

EVERYTHING YOU NEED.

Product catalogues, selection charts and technical references available to download.

02 CONTROLLER
PDF

ELCON Controller

Controllers & protection

DOWNLOAD ↗
03 PUMP RANGE
PDF

PEM / JTS / CTS

Domestic pump selection

DOWNLOAD ↗
05 SELECTION
PDF

S4S 4-inch Quick Chart

Borehole selection

DOWNLOAD ↗
07 SUBMERSIBLE
PDF

S4P TurboSub Series

Submersible catalogue

DOWNLOAD ↗
08 LEVEL CONTROL
PDF

CPV / CPH Float

Float switch range

DOWNLOAD ↗
CRI / WARTHOG AGENCIES

SPECIFY WITH CONFIDENCE.

Keep the technical information close when selecting, specifying or installing your next pump solution.

C.R.I.
BUCO
Enquire locally

Find your nearest BUCO pump STORE.

Warthog Agencies supplies retail partners across South Africa. The public can purchase C.R.I. products through participating BUCO stores. Choose your nearest branch below to enquire about the right pumping solution for your project.

Find C.R.I. pumping solutions at participating BUCO stores
